Name: BusBoard Prototype Systems KIT-1553DBAT Box PCB, Black Handheld Soft Sided Plastic Box with Batt. Compartment, with PR1553DBAT PCB, Box = 5.8 x 3.5 x 1.0 in
SKU: 1157796

BusBoard Prototype Systems KIT-1553DBAT Box PCB, Black Handheld Soft Sided Plastic Box with Batt. Compartment, with PR1553DBAT PCB, Box = 5.8 x 3.5 x 1.0 in

$ 17.00

$ 21.00

Save: $

Size:

One Size

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Box is black ABS plastic with soft gray side panels, secured with self tapping screws (included) and a battery compartment for 2xAA or 1x9V (battery clips included).
Box Size 5.8 x 3.5 x 1.0 inches (147 x 89 x 26 mm)
Single-sided high-quality FR4 glass-epoxy circuit board, 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
0.042" holes are drilled on 0.1" (2.54mm) centers. 6 mounting holes. Screws provided.
PCB Size 2.850 x 4.175 in. (72 x 106mm)

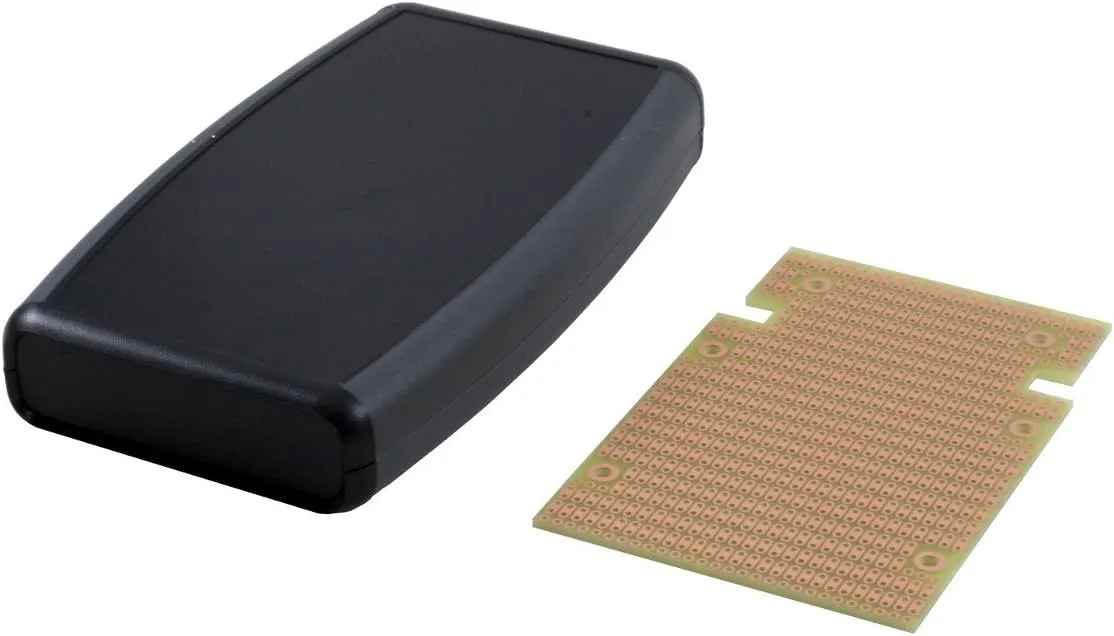

This kit is a Hammond 1553DBKBAT soft-side plastic enclosure packaged together with a matching ProtoBoard 2-hole per strip PCB.The soft-sided ergonomic hand-held electronic case has a battery compartment for 2xAA or 1x9V (battery clips included). It has a long life "three snap" battery door. It has 1 removable end panel and a recessed top for membrane overlay or keypad. Lap joint construction provides protection against dust accumulation and splashing water. The PR1553DBAT prototyping circuit board (PCB) has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area.
