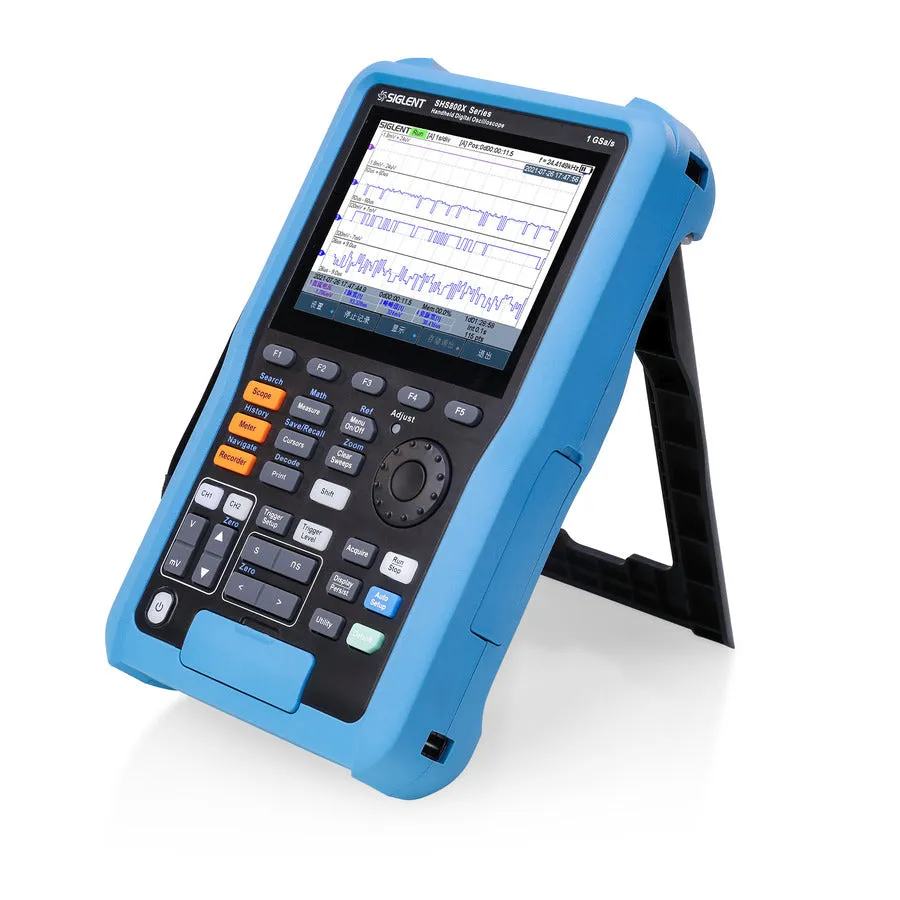

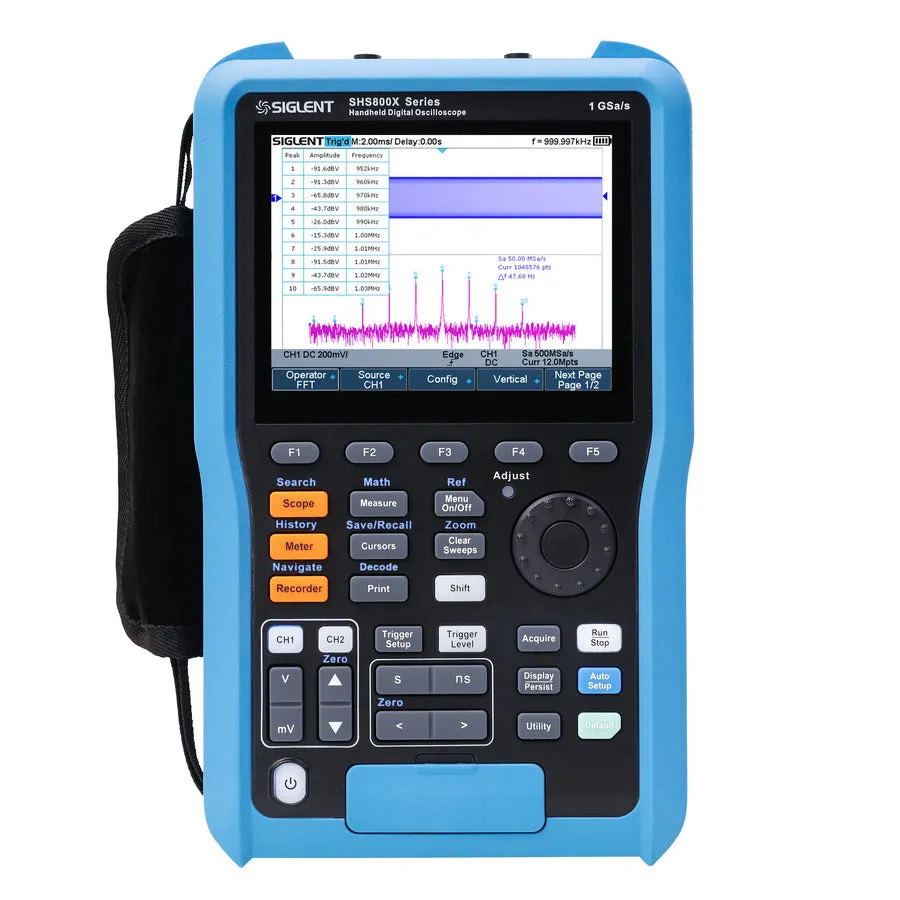

The SHS800X Series Handheld Oscilloscopes provide the user with an Oscilloscope, Multimeter, and Recorder (including trends and waveform recorder) functions all in one package. It inherits the SHS1000 series stable performance and high performance along with the flexibility to use on a workbench or in the field. The SHS800X series has two non-isolated scope channels and one isolated multimeter channel.
Features:
- High-Performance Oscilloscope
- Bandwidth: 100 MHz
- Memory depth: 2 Mpts
- Sampling Rate: 1 GSs/500 MSs

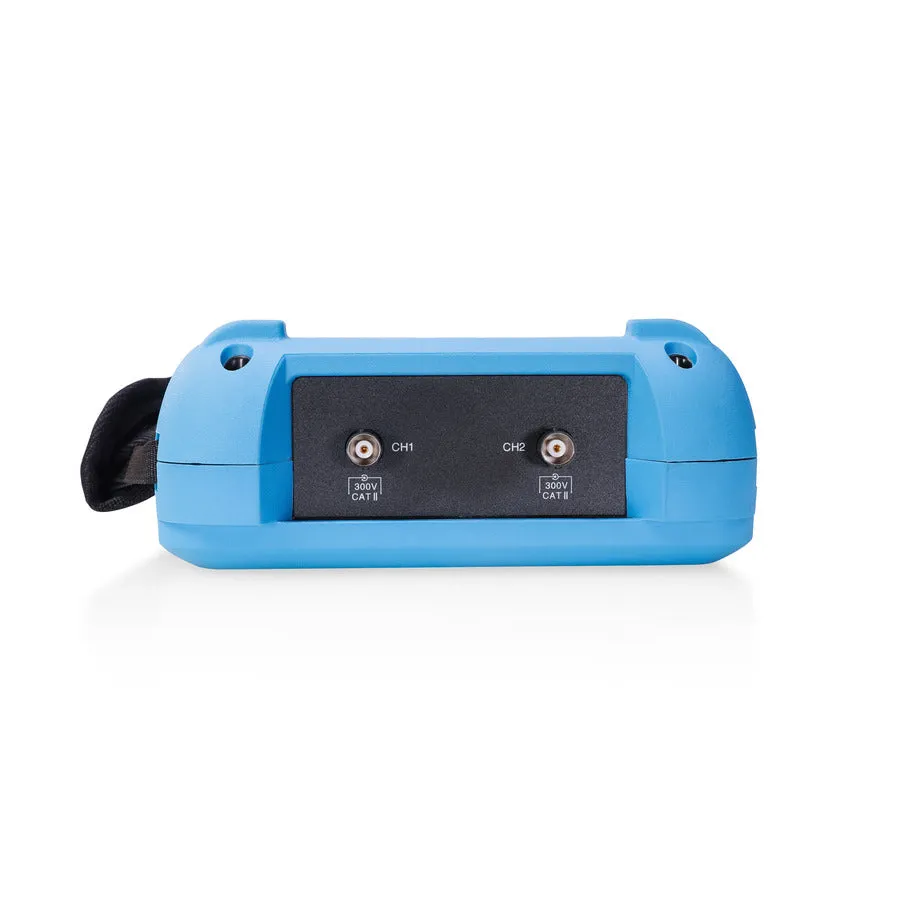

- Channels: 2
- Display: 5.6 inch TFT LCD (640x480)
- Interface Types: Isolated USB Host, USB Device (Micro USB TMC)
- Data Recorder Function
- 7M internal storage, up to 18hrs recording time
- USB port, up to 3000 hours recording time
- Record, replay and zoom functions supported
- High Precision Multimeter
- 6000 count display

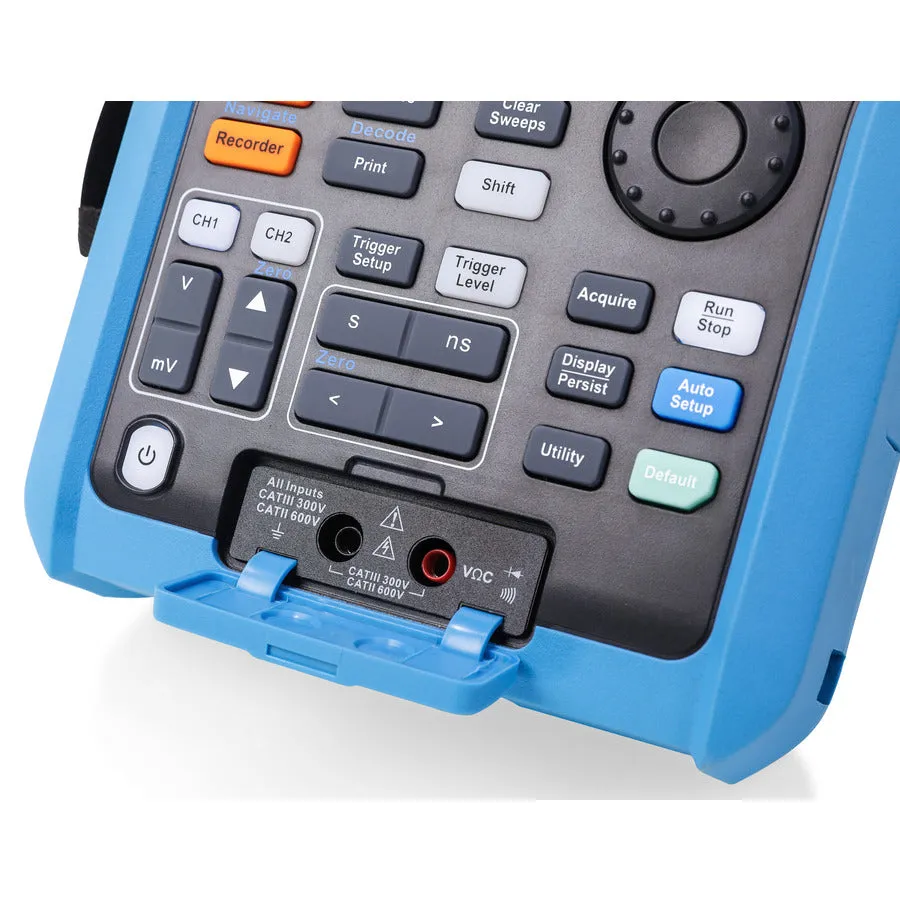

- Max input Voltage CAT-III 300 Vrms, CAT-II 600 Vrms (SHS810X)
- Accurate measurement of DCV, ACV, DCI, ACI
- Accurate measurement of Resistance, Diode, Capacitance, Continuity
- Trend Plot
- 32 measurement trend plot analyzer
- Scope: 800k points capacity, more than 24 hours recording time
- Meter: 1.2M points capacity 9320 hours recording time at 0.05Sa/s
- Supports 256 level intensity grading and color temperature display modes

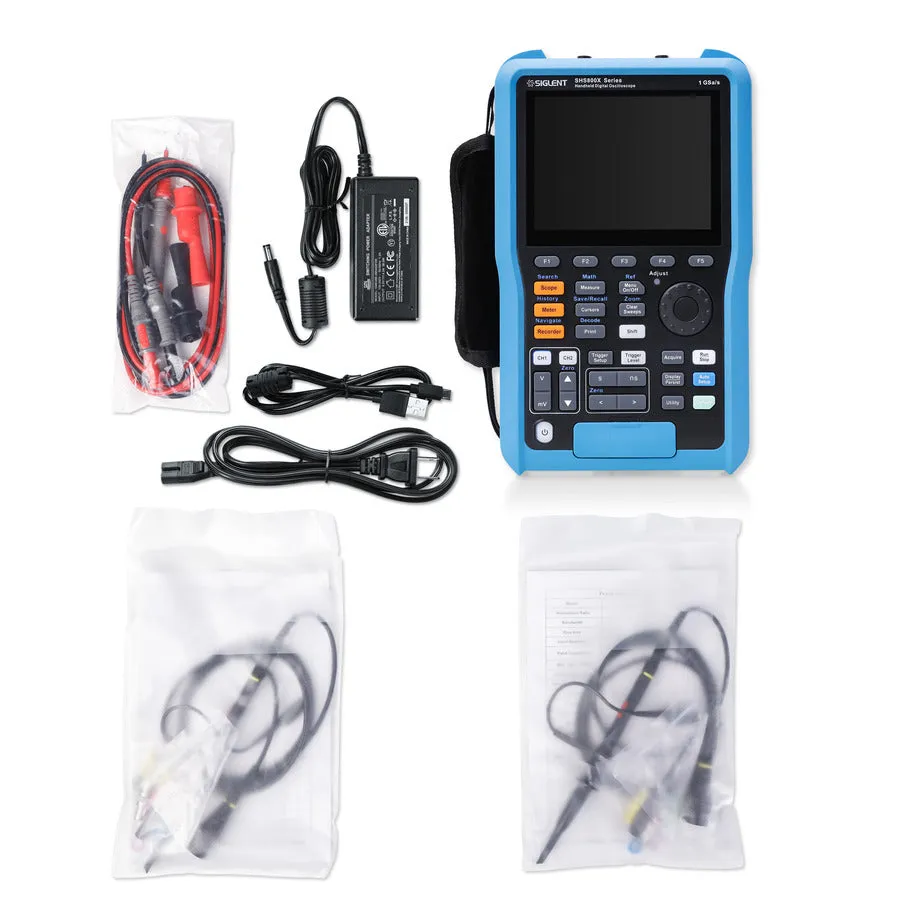

Standard Accessories:
- Two PP510 Passive Probes (SHS810X)
- Multimeter Probes

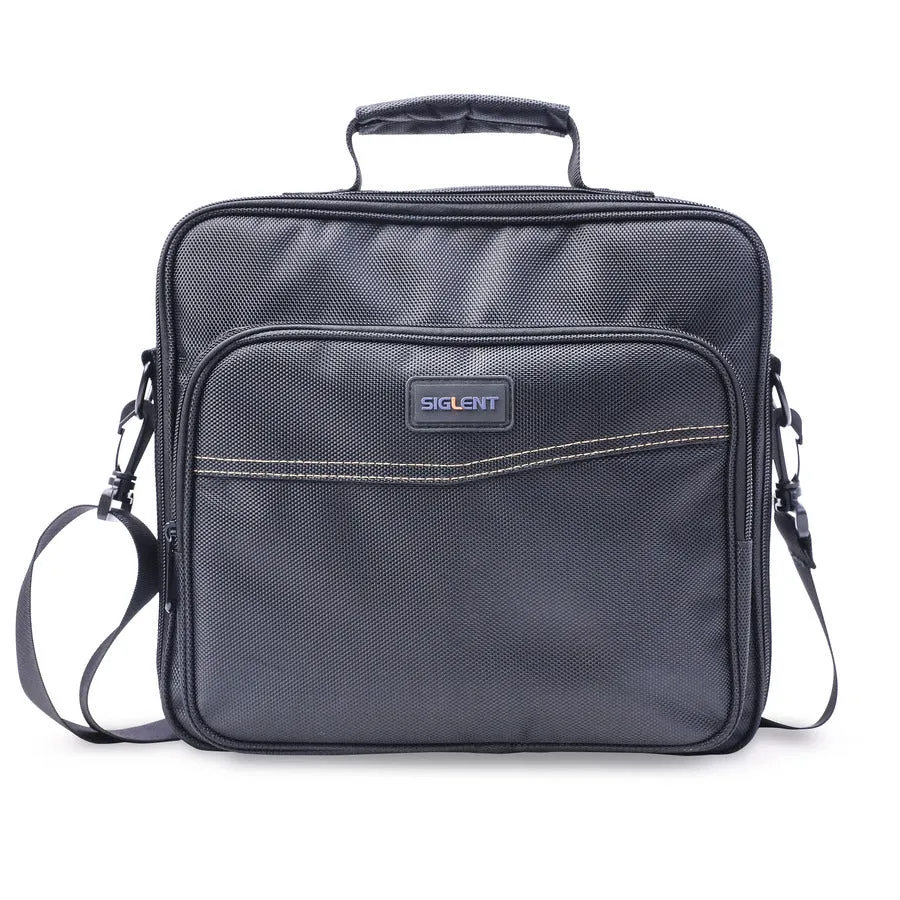

- Soft Carry Case
- SCD600MA current measurement adapter
- SCD10A current measurement adapter
- USB Cable

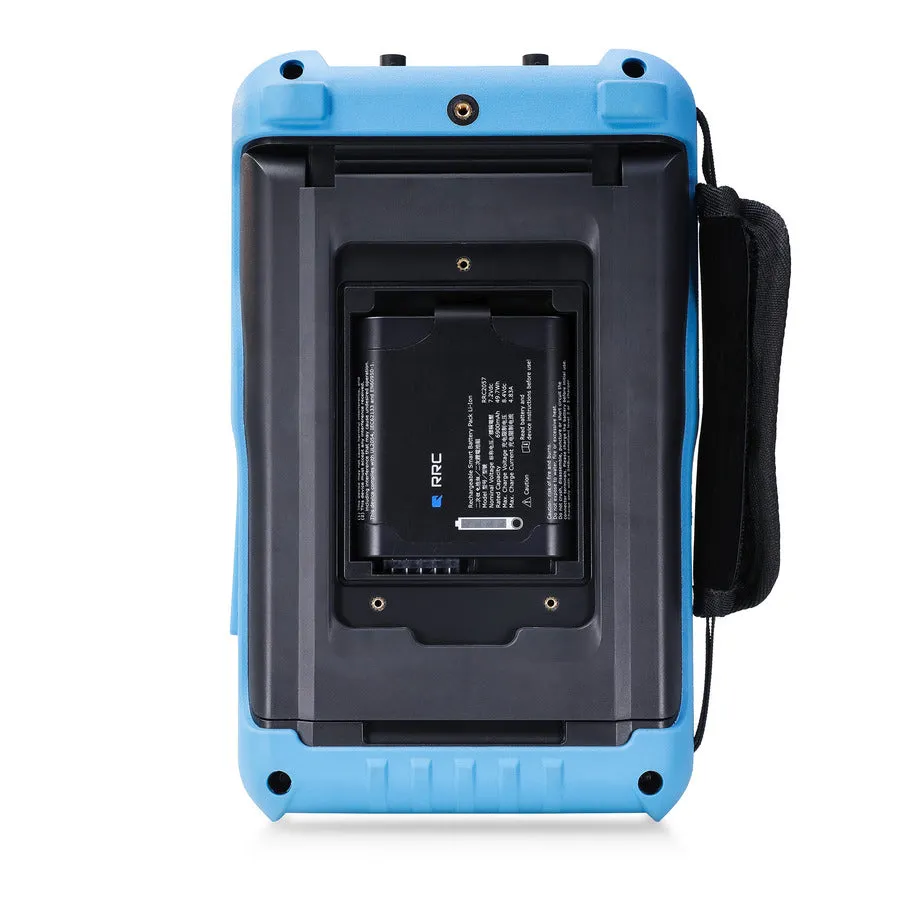

- Battery
- Power Adapter
- Quick Start Guide
- Certification
